This is an entirely new style metal powder menufactured from aluminium
foil which is processed like a mirror surface and the Brilliance
and reflection performance improved foil is made into powder under
maximum precision, It is an angle wise flake with such piece having
metallic luster of Jewel-Like glisten and uniformed particles.
A special film which act to protect the particle mirror surface
and the colorful coloring and baking treatment is given. This covered
film has a superior character of heat resistance, lightfastness,
solvent resistance and knead in synthetic resin etc. Which create
new fields for metallic color and expand the infinite possibilities. |
| Characteristic of Diamond Piece "H"
Type |
| Luster |
It is a piece shaped powder
which sparkle like a jewel and has a metallic foil peculiar
color and brilliance. |
| Concealment |
It has no conceal power however,
since it twinkle and sparkle, large effect can be obtained
with small quantity used. Covering area 30m2/kg. |
| Compatibility |
Kneaded in synthetic resin,
Vinyl chloride sheet, castng for polyester, acrylic, epoxy
resin etc. And air spray by mixing with paint, textile printing
by using emulsion resin etc. and can be used widely. |
Corrosion
Resistance,
Chemical
Resistance |
Since the metallic foil surface
is covered by protective layer it is resistance to acid, alkali,
and other corrosion atmospheres and solvents. Thus retain
brilliance and metallic luster for a long time. |
Powder
Shape |
It is quadrangle flake-like
powder and specific gravity is small and dispersion is good. |
Heat
Resistance |
No change in luster under
30minutes left within the dryer test of 230℃ in powder condition. |
|
*When applying test with small quantity at the beginning and then decide.
|
Dry-mix Diamond Piece H into transparent plastics and pellets.
This blend can be molded just like general plastics.
- Unlike conventional metallic pigments, Diamond Piece Particles
are actually colored. Depending on the particle size, an entirely.

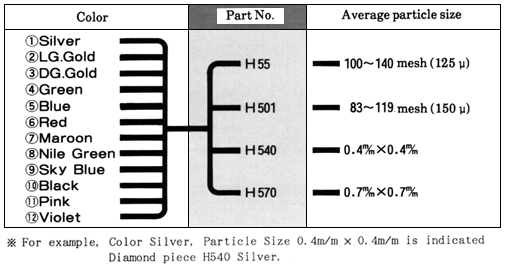

- The particle size to be used is determined by the gate diameter,
but the use of a slightly larger particle size, H54 (50 mesh)
is recommended for greater effectiveness and economy.
- The mixing ration of Diamond Piece to plastics depends on
the thickness or application of the product being finished.
The standard ratio, however, is about 1.2% (by weight) to the
resin.
|
| Regarding Applications of Diamond Piece
"H" |
| ▲Metallic
Screen Printing |
▲Metallic
Decoration Article |
Request
for data
|
